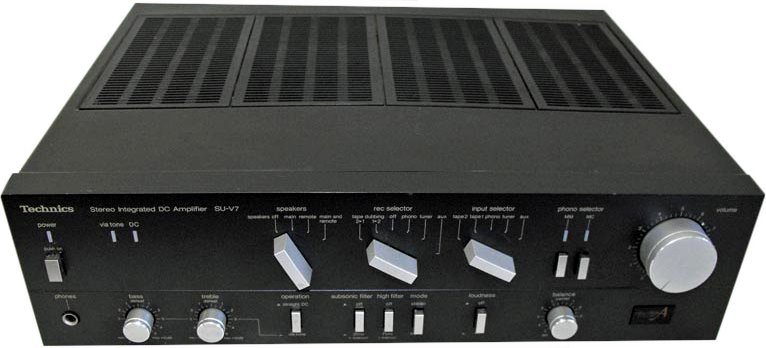

Technics SU-V7

<< Previous Next >>
[Thumbnail]
Click to enlarge icon

Details

Description:Form Integrated DC amplifier
SP out overall characteristic>
Effective output (20Hz - 20kHz) 80W+80W (4 ohms, 0.007%) | 80W+80W (8 ohms, 0.003%)
THD 0.003% (Output-power-3dB, 20Hz - 20kHz)
Power bandwidth (THD 0.02%) 5Hz - 100kHz
Frequency characteristic (straight DC) 20Hz-20kHz+0 -0.2 dB | 0.5Hz-170kHz+0 -3 dB
TIM Incapable measurement
SN ratio (IHF-A, straight DC) 100dB
Remains noise (straight DC) 550 microvolts
Dumping factor (8ohms) 60
Load impedance main or remote: 4ohms - 16ohms
main and remote: 8ohms - 16ohms

Input sensitivity/impedance Phono man month: 2.5mV / 47kohm
Phono MC: 170 microvolts/220 ohms
Tuner, Aux, Tape:150mV /, 27kohm
Phono maximum permissible input
(1kHz, RMS, THD 0.01%) MM:150mV | MC:10mV
Pre part THD Phono man month->Rec out(5V): 0.005%
Phono SN ratio MM:86dB
MC (250 microvolt input): 68dB
Phono frequency characteristic 20Hz - 20kHz
RIAA±0.5dB
Tone control Bass: ±10dB (50Hz)
Treble: ±10dB (20kHz)
Filter High: 7kHz-6dB / oct
Subsonic: 20Hz-12dB / oct
Loudness control + 9dB (50Hz, Volume-30dB)
Pre part Output voltage Rec out:150mV

Power source AC100V, 50Hz/60Hz
Power consumption 140W
Dimensions:430 x 120 x 362mm (W x H x D)
Weight:9.5kg
Year:1980
