Tannoy HTS101 XP

<< Previous Next >>
[Thumbnail]
[Thumbnail]
[Thumbnail]
Click to enlarge icon

Details

Description:Satellites / Centre
Recommended amplifier power: 25 – 100 Watts (RMS)
Sensitivity: 89dB
Nominal Impedance: 8 Ohms
Frequency response: 100Hz – 43kHz

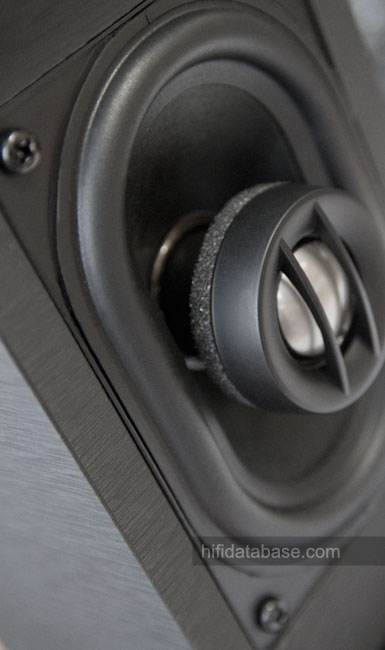

1 x Co-axial high frequency 20mm (0.78”) titanium WideBand™ dome, with neodymium magnet system
1 x Co-axial high frequency 100mm x 65mm (4 x 2.5") elliptical paper cone
Magnetic shielding: No
Crossover Frequency: 3kHz (LF to HF)

Subwoofer
Model: TS2.8
Amplifier output power: 180 Watts (RMS)
Low frequency roll off: 34Hz
Crossover frequency: 50 - 150Hz variable, 2nd order
Driver: 200mm (8") paper cone, long throw
Drive Unit: 200mm (8") long throw side firing woofer | 200mm (8") long throw auxiliary bass radiator (ABR)
Magnetic shielding: No
Protection systems: Over temperature, switch on/off transient, over current, over-drive (clipping compressor)
Input connections: Phono (RCA) LFE and stereo left & right

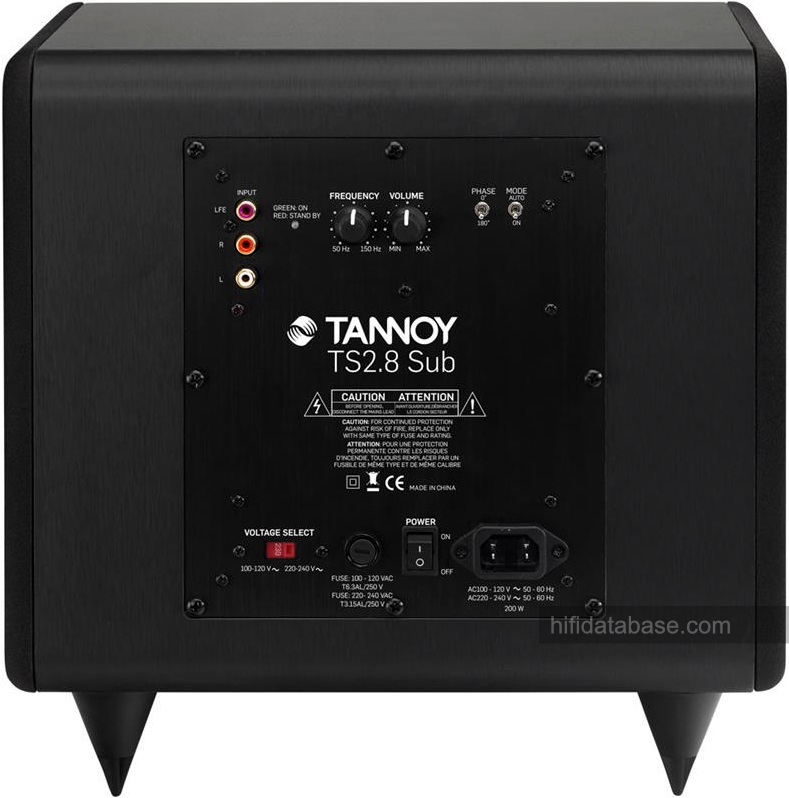

User controls: Volume, crossover frequency, phase (0-180°, switchable), mode (auto/always on), mains on/off
Rated maximum power consumption: 200 Watts
Dimensions:Sats: 100 x 185 x 109 | Sub: 325 x 320 x 270mm (W x H x D)
Weight:Sats: 1.4 kg | Sub: 8.6kg
Year:2015
