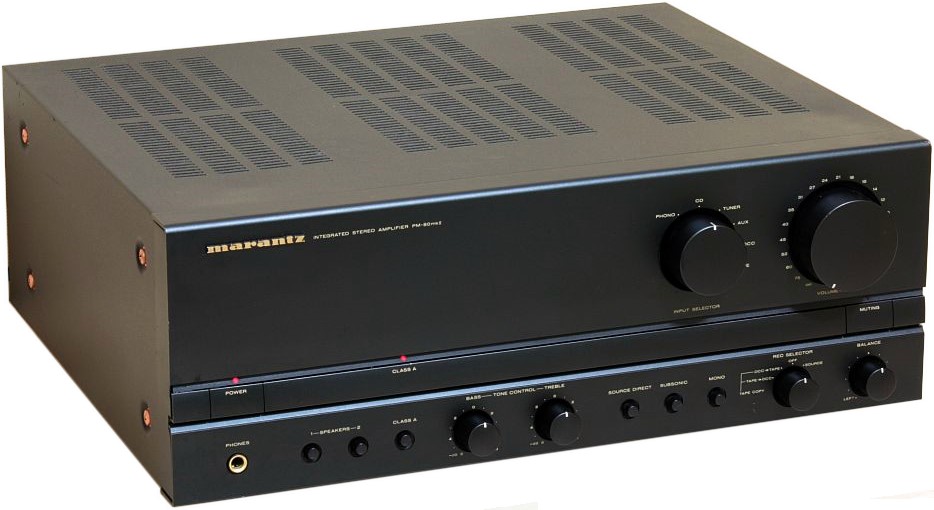

Marantz PM-80

Click to enlarge

Description:	Output power Class AB: 140W+140W (4ohms) \| 120W+120W (6ohms) \| 100W+100W (8ohms) Output power Class A: 20W+20W (8ohms) THD (1kHz, 8-ohm load intensity): 0.0008% Output bandwidth (an 8-ohm load intensity, 0.03%): 10Hz - 50kHz Frequency characteristic: Compact Disk and a Source Direct: 10Hz-100kHz+0 -3 dB Dumping factor: 180 (an 8-ohm load intensity, 20Hz - 10kHz) Input sensitivity/impedance: Phono MC: 250 microvolts/100 ohms \| Phono man month: 2.5mV/47kohm \| High SFT Level: 150mV/33kohm SN ratio (A network): Phono MC: 75dB \| Phono MM: 85dB \| High Level: 105dB
Dimensions:	454 x 165 x 380mm (W x H x D)
Weight:	17.5kg / 38.5lbs
Year:	1989
