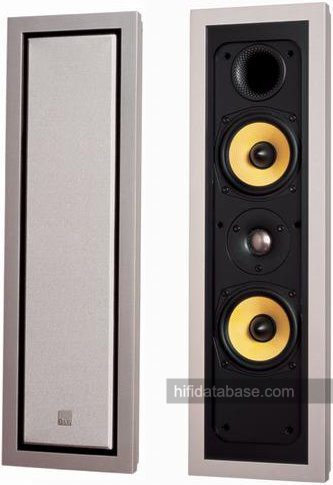

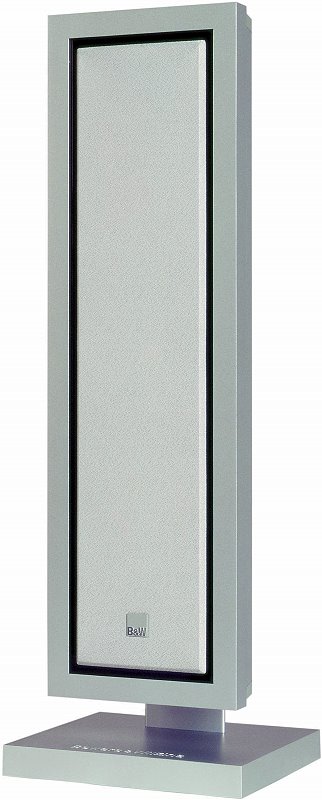

Bowers Wilkins FPM4

<< Previous Next >>
[Thumbnail]
[Thumbnail]
Click to enlarge icon

Details

Description:Description: 2-way vented-box system
Drive units: 2 x 110mm Kevlar cone bass | 1 x 25mm alloy dome high-frequency
Frequency range: -6dB at 65Hz and 42kHz
Frequency response: 72Hz 22kHz 3dB on reference axis
Dispersion: Within 2dB of reference response | Horizontal: over 40 arc | Vertical: over 10 arc
Sensitivity: 88dB spl (2.83V, 1m)
Harmonic distortion: 2nd and 3rd harmonics (88dB, 1m) | <1% 100Hz 20kHz | <0.5% 200Hz 10kHz
Nominal impedance: 8 ohms (minimum 4 ohms)
Crossover frequency: 180Hz, 3.7kHz
Recommended amplifier power: 25W 120W into 8 ohms on unclipped programme
Dimensions:170 x 563 x 102mm (W x H x D)
Weight:4.75kg
Year:--

Rating: 4.00 out of 10
Votes:1
Views:7,812
Reviews:0
